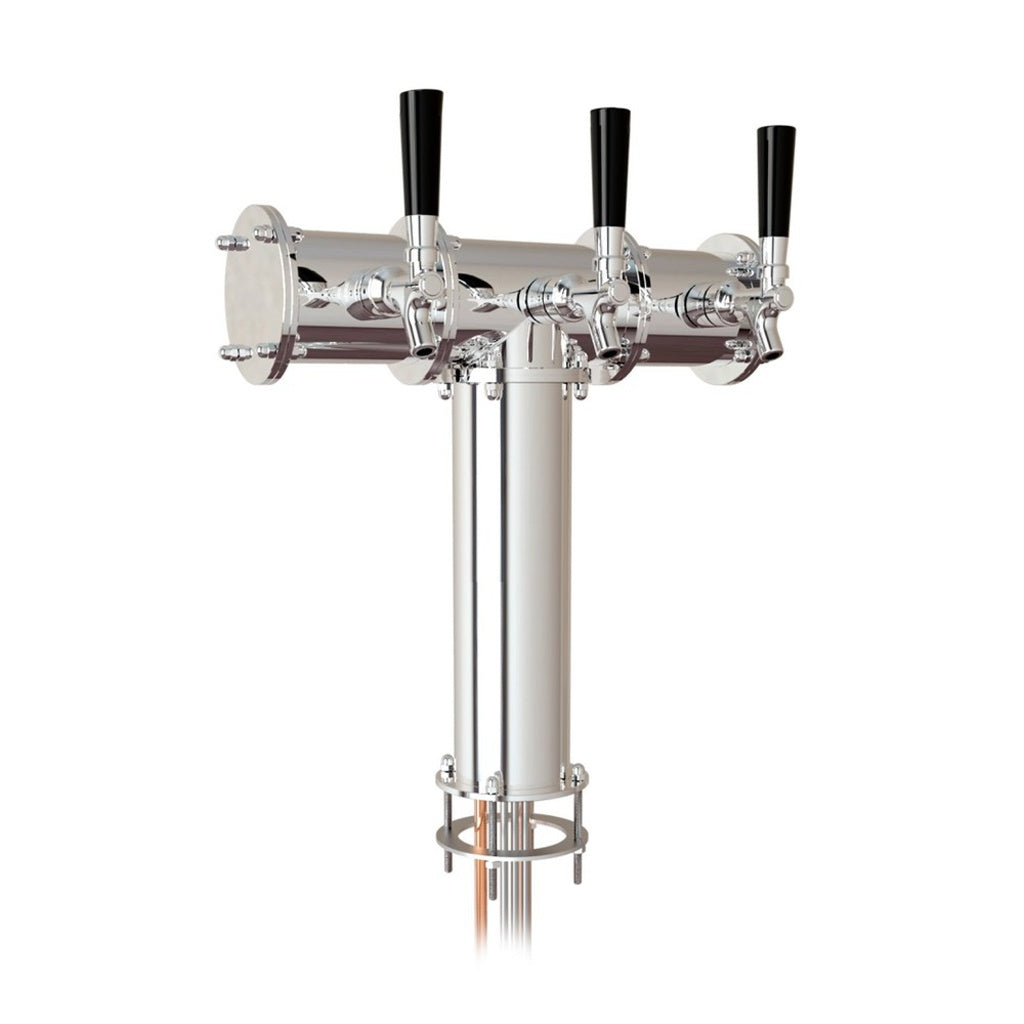

Imported Polished Stainless Steel Columns & Towers

ALL 304 Stainless Steel FAUCETS, SHANKS AND 3/16? PRODUCT LINES COOLTAP SHANK TECHNOLOGY

Terra 3 Faucets

Glycol Cooled

• 3-1/3? Diameter
• 16? Height
• 14-3/8? Width
• 5-1/2 lbs. Restriction

Knobs Sold Separately

All towers are manufactured of heavy gauge stainless steel and highly polished to mirror finish.

Shanks bolt into large aluminum blocks with copper glycol lines passing through the blocks to insure optimal cooling. Beer lines and glycol lines are bundled together in an insulated, foiled enclosure providing efficient convection cooling of beer lines. Thermo-seals are used to separate the cooling blocks from the body to ensure no condensation on the tower. 3/16? product lines are 304 grade Stainless Steel with 3/16" barbed ends extending out past bottom of tower (additional restriction will need to be applied). 3/8" copper glycol lines with 3/8? barbed ends extending out past bottom of tower for easy connection. Shanks and faucets are 304 grade Stainless Steel as well.

Column Type: Terra
Cooling: Glycol
Faucets: 3
Liquid Contact: 304 Stainless
Pedestal: 3" Diameter
Tower/Column Type: Terra
Faucet Material: 304 S/S
