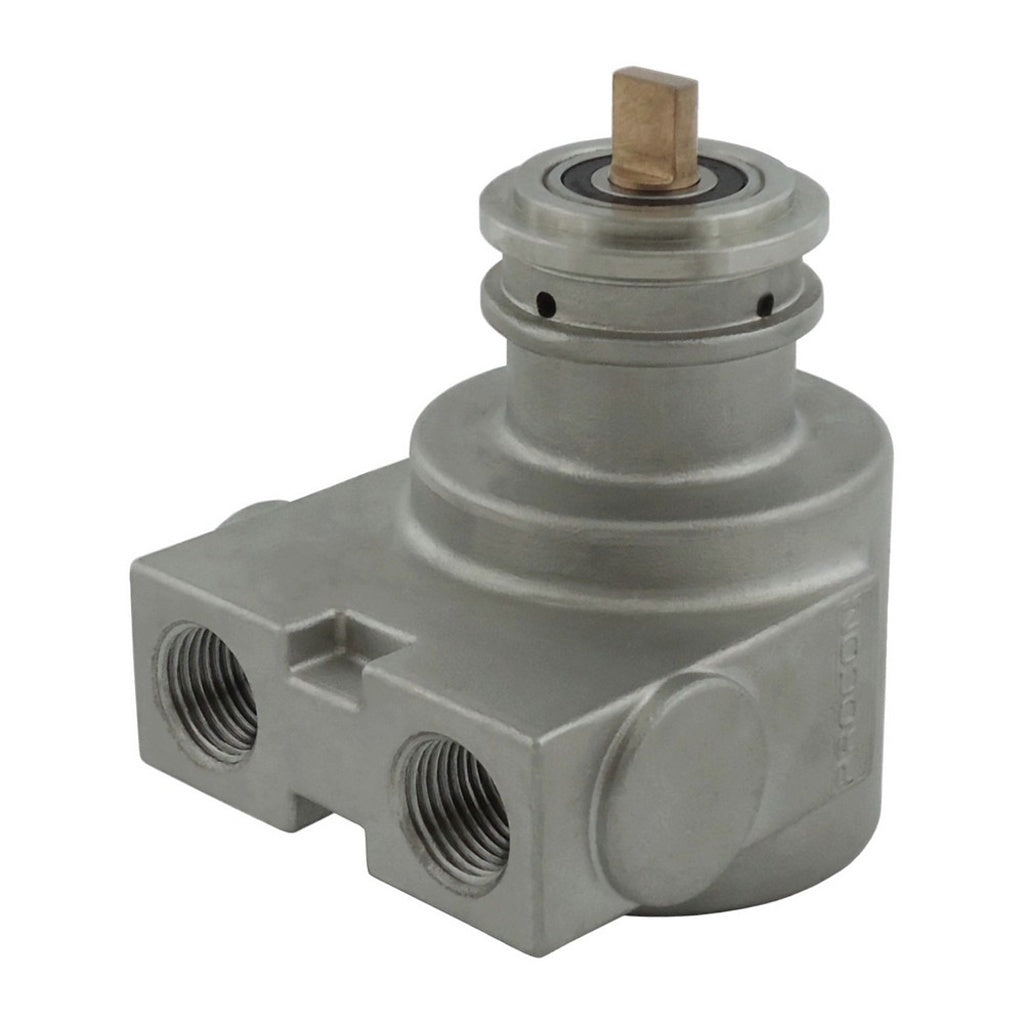

Procon Rotary Vane Fluid Pump

All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).

Series 5

Series 5 Pumps have a brass body and is design for operating flow rates of 115 GPH to 330GPH. This series is constructed the same as the Series 3 pumps only larger in size. Has 1/2" FPT ports.

Mounting: Clamp-On
Flow Rate (GPH): 240
Procon Series: 5
Manufacturer No: 105B240F31XX
Drive Coupler: Double Flat Bronze
Seal: Nitrile
Relief Setting: No Relief
Capacity: 115 to 330 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
