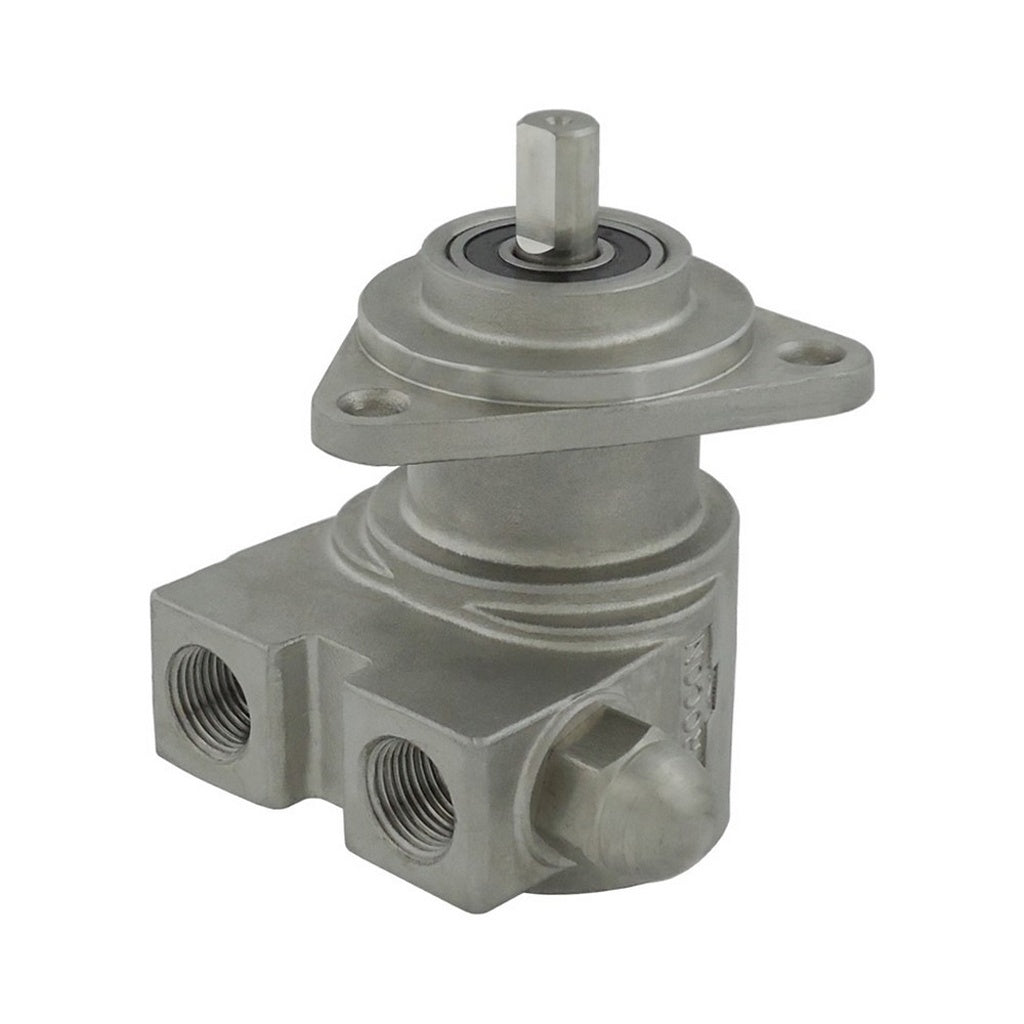

Procon Rotary Vane Fluid Pump

All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).

Series 3

Series 3 Pumps have a stainless steel body and is design for operating flow rates of 15 GPH to 140 GPH. This series is the same as the Series 1 pumps but does not include the integral strainer.

Mounting: Bolt-On
Flow Rate (GPH): 100
Procon Series: 3
Manufacturer No: 113E100F31BA170
Drive Coupler: Single Flat Stainless Steel
Seal: Nitrile
Relief Setting: 170 PSI
Capacity: 15 to 140 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~2.5 lbs
Self-Priming (water): 6 ft. max. lift
