Product Details
Product Details
Procon Rotary Vane Fluid Pump
All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).
Series 3
Series 3 Pumps have a stainless steel body and is design for operating flow rates of 15 GPH to 140 GPH. This series is the same as the Series 1 pumps but does not include the integral strainer.
Specifications
Specifications
Mounting: Clamp-On
Flow Rate (GPH): 100
Procon Series: 3
Manufacturer No: 113A100F31BA170
Drive Coupler: Double Flat Stainless Steel
Seal: Nitrile
Relief Setting: 170 PSI
Capacity: 15 to 140 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~2.5 lbs
Self-Priming (water): 6 ft. max. lift
Documents
Documents
No documents available

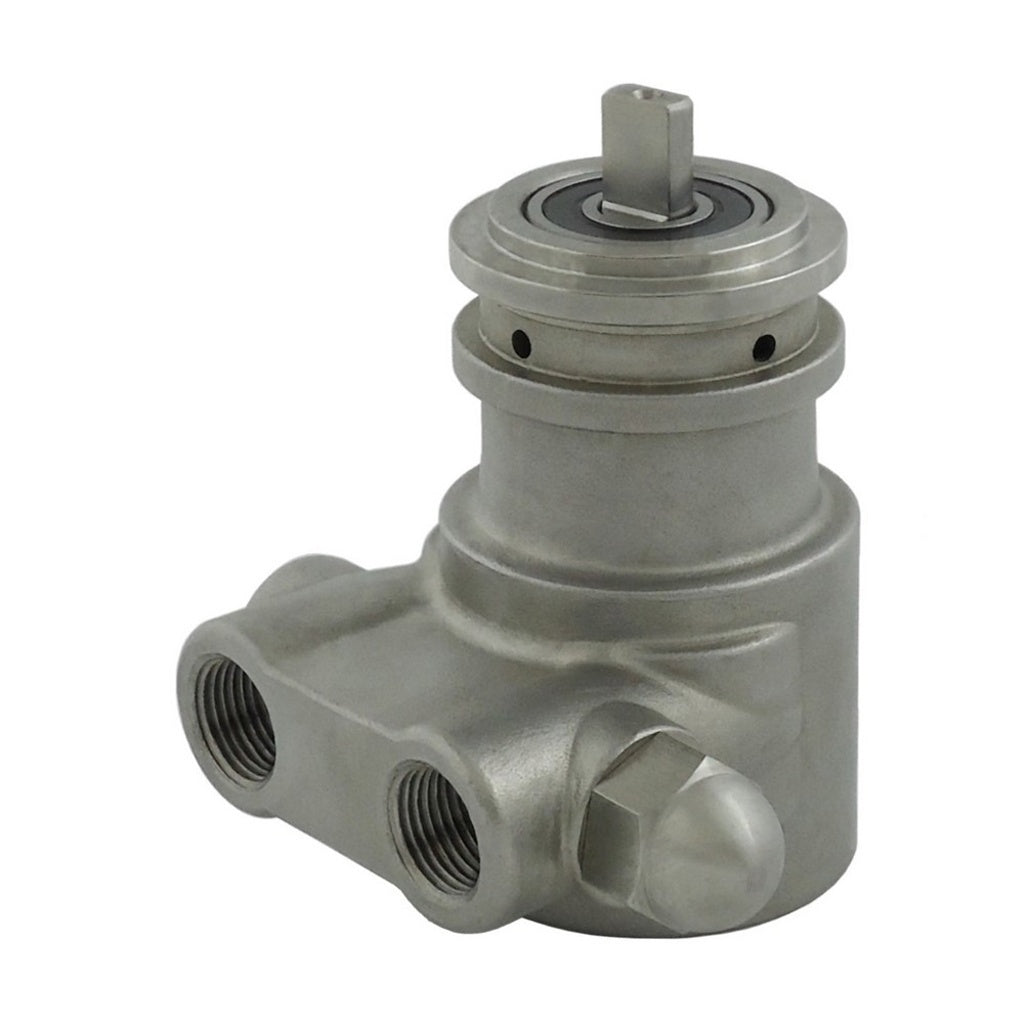

Procon Series 3 Pump, 100 GPH, Stainless Steel
Manufacturer: Procon
Manufacturer #: 113A100F31BA170
Foxx #: 09H02106
Log in for price and availability
- All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available)
- Max. Discharge Pressure: 250 PSI
- Product type: Stainless Steel Procon Pump
⚠ WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
