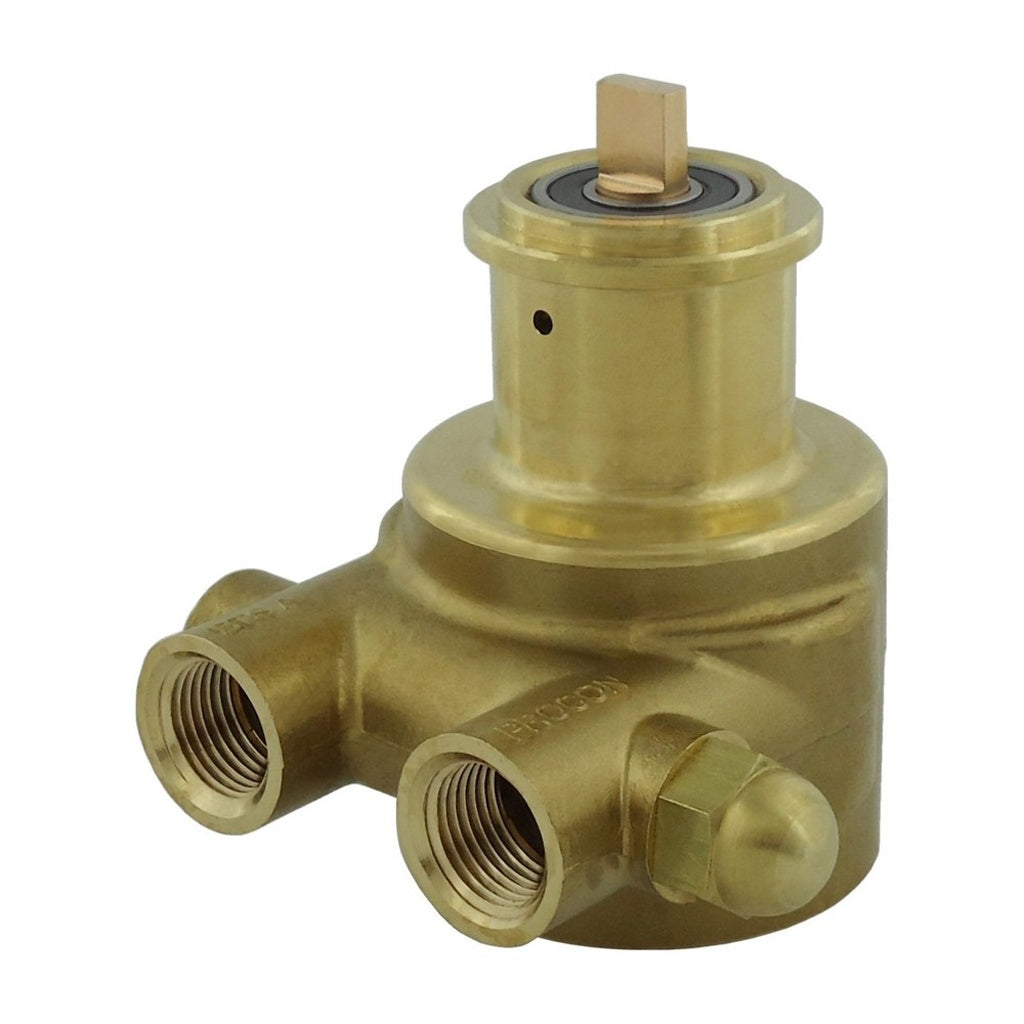

Procon Rotary Vane Fluid Pump

All pumps have a nominal speed of 1,725 RPM, a maximum discharge pressure of 250 PSI, clockwise rotation, and an adjustable relief range (if available).

Series 4

Series 4 Pumps have a brass body and is design for operating flow rates of 115 GPH to 330GPH. This series is constructed the same as the Series 2 pumps only larger in size. Has 1/2" FPT ports.

330 gph model requires minimum 20 psi inlet pressure.

Mounting: Clamp-On
Flow Rate (GPH): 240
Procon Series: 4
Manufacturer No: 104B240R11BB130
Drive Coupler: Double Flat Bronze
Seal: Fluorocarbon
Relief Setting: 130 PSI
Capacity: 115 to 330 GPH
Nominal Speed: 1,725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~4.5 lbs
Self-Priming (water): 6 ft. max. lift
