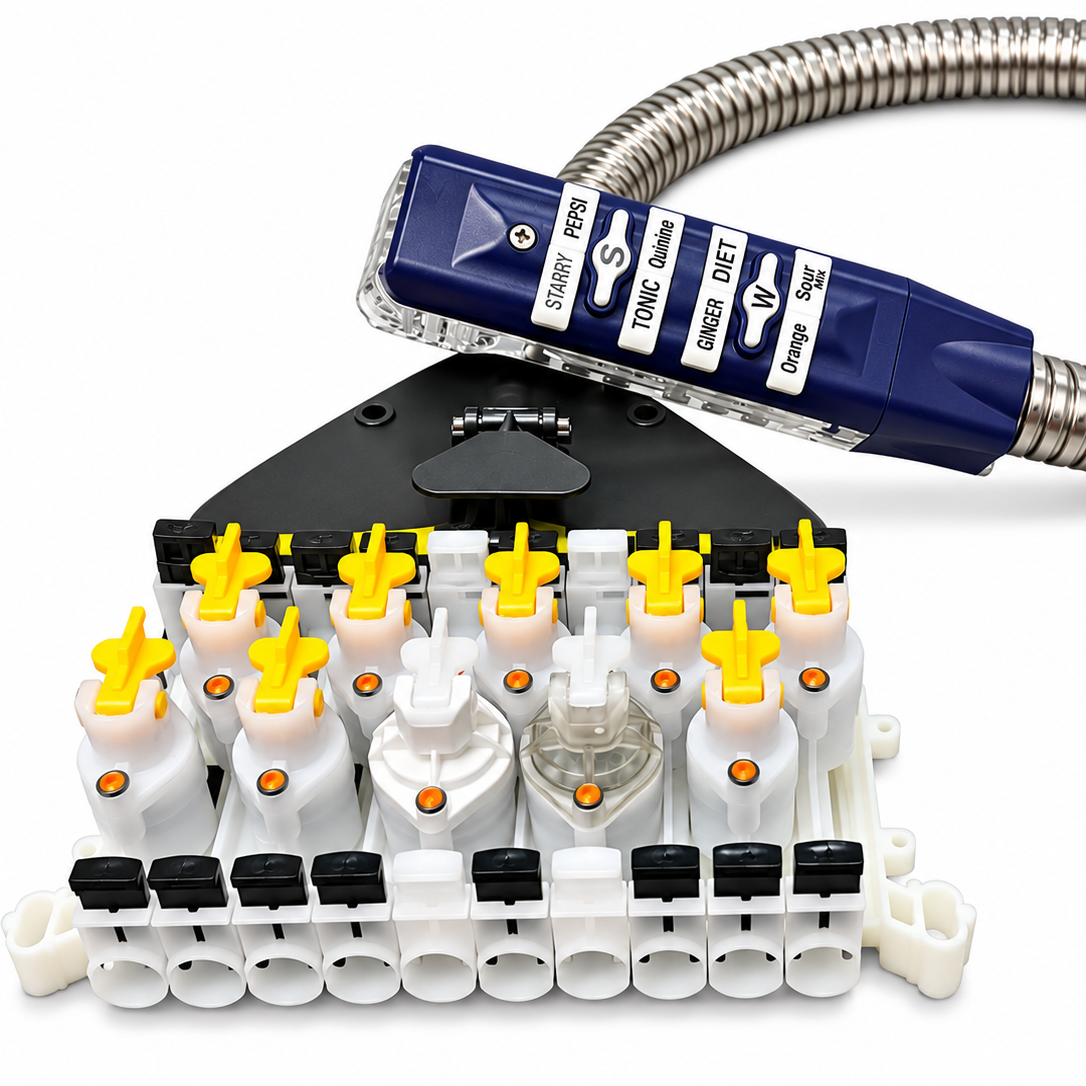

The Wunder-Bar M5 is a redesigned postmix bargun built for faster, more consistent pours. Optimized fluid passages in the handle deliver up to 2.5 oz per second, and factory-calibrated orifices set the Brix ratio right out of the box, including for more viscous syrups. A lighter, low-profile handle and fewer parts make it easier to use and simpler to stock parts for.

The manifold uses Constant Flow Valves to regulate the syrup, soda water, and still water channels after the manifold, each at the pressure its Brix ratio calls for. A toggle shut-off and lever-action tube collector streamline service. Works with any bag-in-box system.

This configuration

10 buttons: 4 carbonated and 4 non-carbonated flavors plus soda water and still water, blue handle, 4 ft stainless-sheathed hose. The 4 carb / 4 non-carb layout suits juice-heavy and energy-drink bars that need as many non-carbonated lines as carbonated ones.

Model: Wunder-Bar M5 Bargun
Type: Postmix bargun and manifold
Buttons: 10 (4 carbonated, 4 non-carbonated, 0 pre-mix, soda water, still water)
Color: Blue
Hose length: 4 ft, stainless steel sheathing
Flow rate: 2.5 oz/sec
Flow control: Constant Flow Valves (post-manifold)
Carbonated water input pressure: 90 PSI recommended (min 80 / max 105)
Still water input pressure: 55 PSI recommended (min 40 / max 70)
Syrup input pressure: 60 PSI recommended (min 50 / max 70)
Water inlet size: 1/4"
Compatibility: Any bag-in-box system
Certification: ETL Sanitation Listed (Intertek)
Shipping carton: 14 x 12 x 4 in
Ship weight: 3.9 lb (est.)
